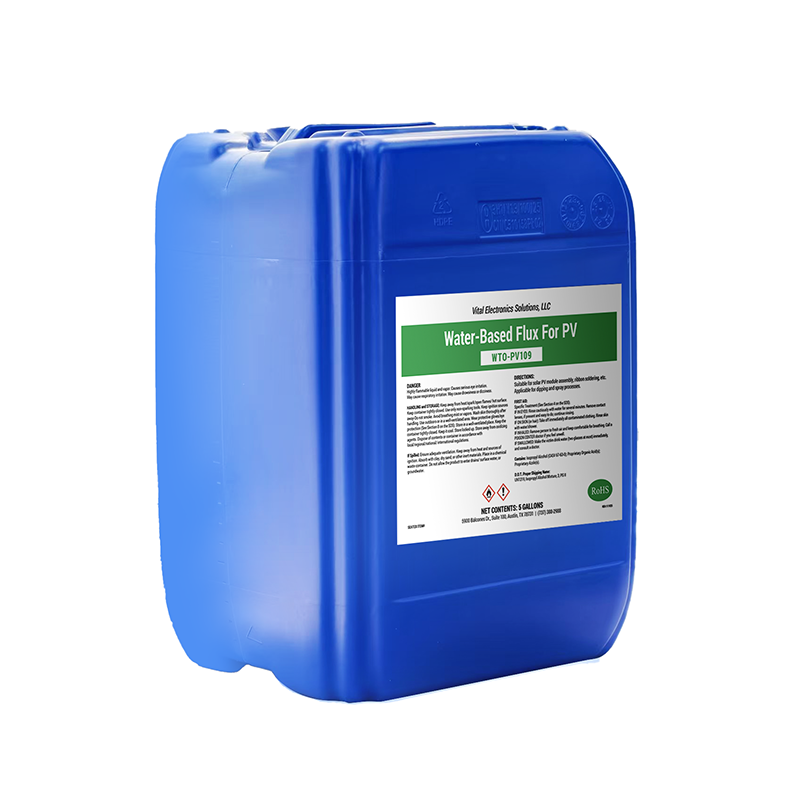

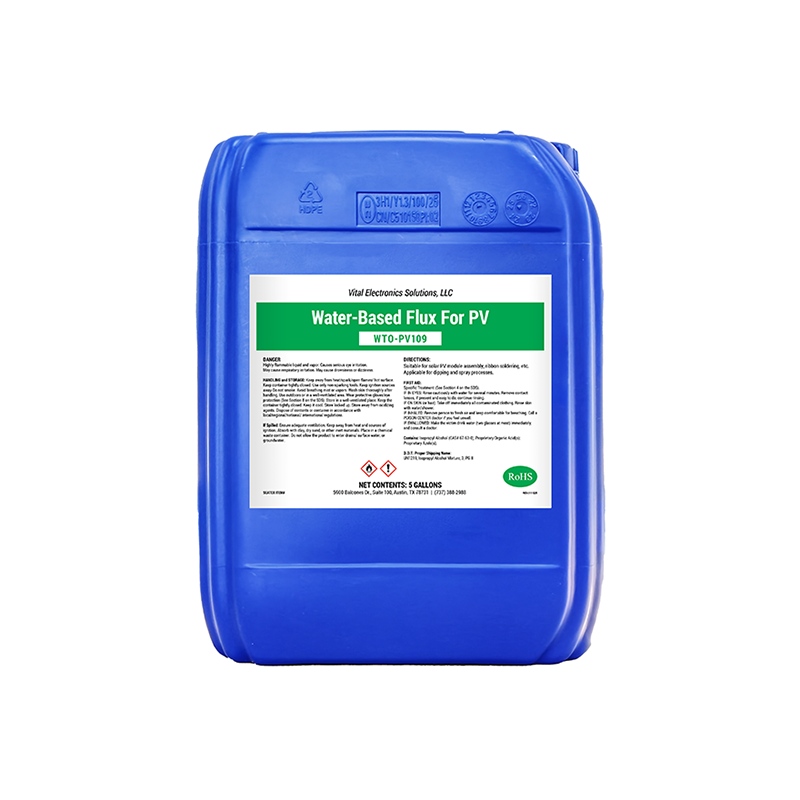

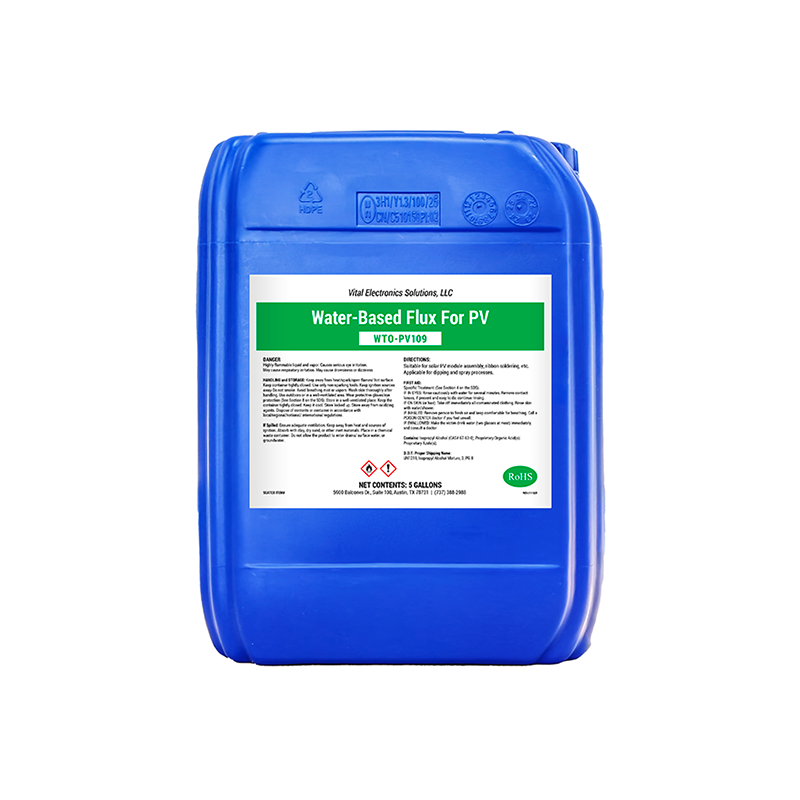

Water-Based Flux For PV

Product Mode: WTO-PV109.
Water-based photovoltaic flux uses deionized water as the solvent, overcoming the shortcomings of VOC solvents. It can be used in combination with various types of solders, with excellent application effects. It is an ideal no-clean water-based flux for environmentally friendly lead-free solders.
Product Description

Application

This product is suitable for applications in photovoltaic modules, solder strips and other processes, and can be applied using dipping and spraying processes.


Key Features

  • Good fluidity and solderability

  • Strong wetting

  • Environmentally friendly, free of RoHS and other substances


Specifications

ITEM

TECHNICAL INDICATORS

TEST STANDARDS

Appearance

Colorless Transparent Liquid

Visual inspection

Non-volatile content (wt%)

1.80±0.50

GB/T 9491-2002 5.4

Specific gravity (g/cm³@20°C)

0.975±0.015

/

Acid value (mgKOH/g)

15.00±5.00

IPC-TM-650 2.3.13

RoHS

PASS

RoHS standard

Packaging

20L / 25L / 200L bucket

Depend on the requirements

Storage temperature

5-35° C

/

Warranty period

One year

/
